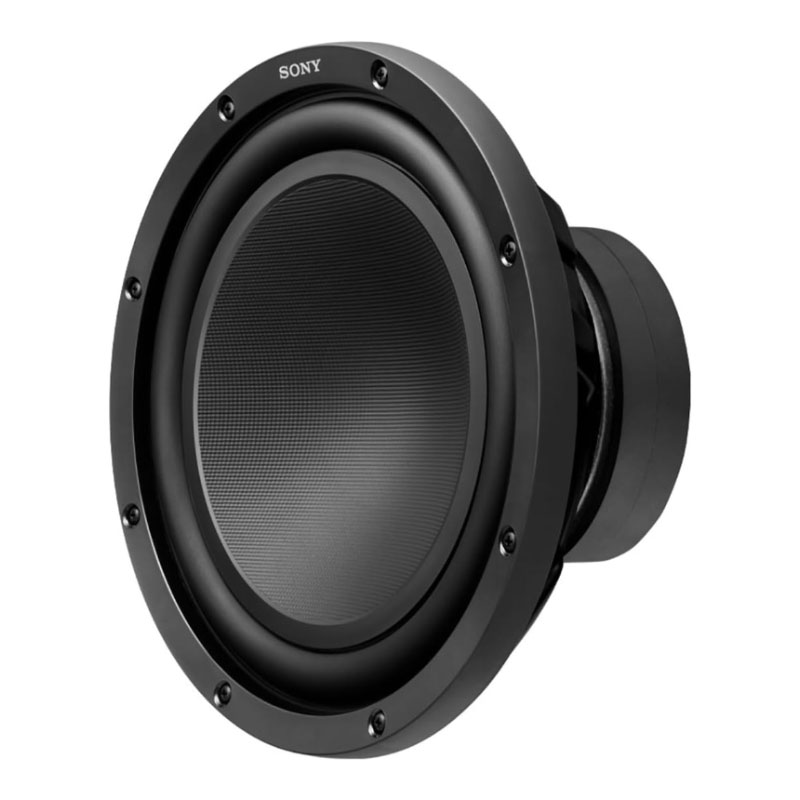

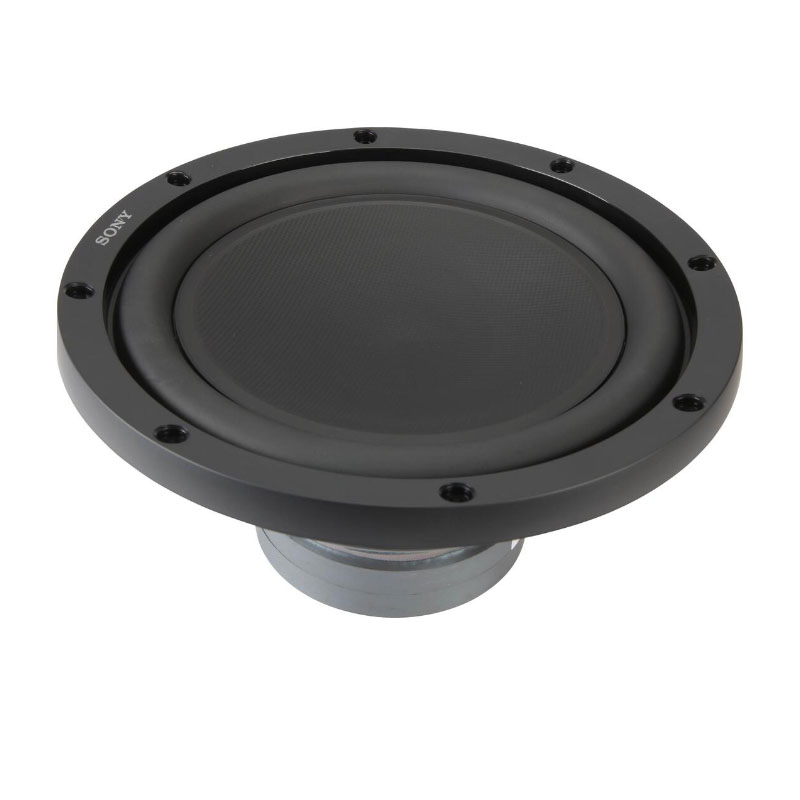

Sony XS-W104GS 10 inch 4 ohm component subwoofer

@btsaudiokenya

Sony premium subwoofer XS- W104GS 📞0722519547📍 Muthithi Rd Hypermarket, Westlands Shop F12. https://www.btsaudio.co.ke/ #sonysub #subwooferbass #subwoofer#sonyes#btsaudiokenya

♬ Find Me Here (Blessings Find Me) – Sherwin Gardner

The Sony XS-W104GS 10 inch 4 ohm component subwoofer designed for car audio systems. It features 350 watts RMS power handling and a peak power of 1500 watts, providing robust bass performance. The subwoofer is constructed with a polypropylene cone and rubber surround for durability and enhanced sound quality.

The Sony XS-W104GS is aimed at audiophiles and car enthusiasts looking to enhance their vehicle’s audio experience. It is designed to deliver powerful bass, making it suitable for various music genres. Its lightweight design and advanced materials contribute to an optimized sound output, ensuring that the low frequencies are clear and impactful.

Light-weight cone diaphragm with polypropylene cap

A light-weight cone diaphragm directly connected to the voice coil reproduces tight low end. The injected polypropylene dust cap ensures rigidity and optimises internal damping, realising powerful and responsive bass sound.

Rubber surround

A rubber surround reduces excessive vibration and supports cone excursion with less distortion. The result is a solid bass response at high volume levels so that your system can play loud and clear.

Progressive height rate double spider

The acoustically-optimised spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone. To increase signal integrity and prevent sound interference the lead wire from the voice coil is also sewn to the spider, reducing wire movement.

Long excursion structure

The Sony XS-W104GS 10 inch 4 ohm component subwoofer voice coil is supported by the double-layered spider, suppressing unwanted rolling, while also ensuring long excursion to reproduce rich bass sounds.

Product Specification:

• 10″ Single 4 ohm XS-Series Subwoofer
• Power Handling:
  • Peak: 1500 watts
  • RMS: 350 watts
• Paper cone with Polypropylene cap
• Rubber surround
• Progressive height rate double spider
• Long excursion structure
• 7.6 mm Xmax
• Ferrite magnet motor structure
• Frequency Response: 27 – 500 Hz
• Resonance Frequency (Fs): 30.9 Hz
• Sensitivity: 86 dB
• Recommended sealed box volume: 1 cubic feet
• Recommended ported box volume: 1.45 cubic feet
• Top-mount depth: 5-3/8″
• Cutout diameter: 9-1/4″
