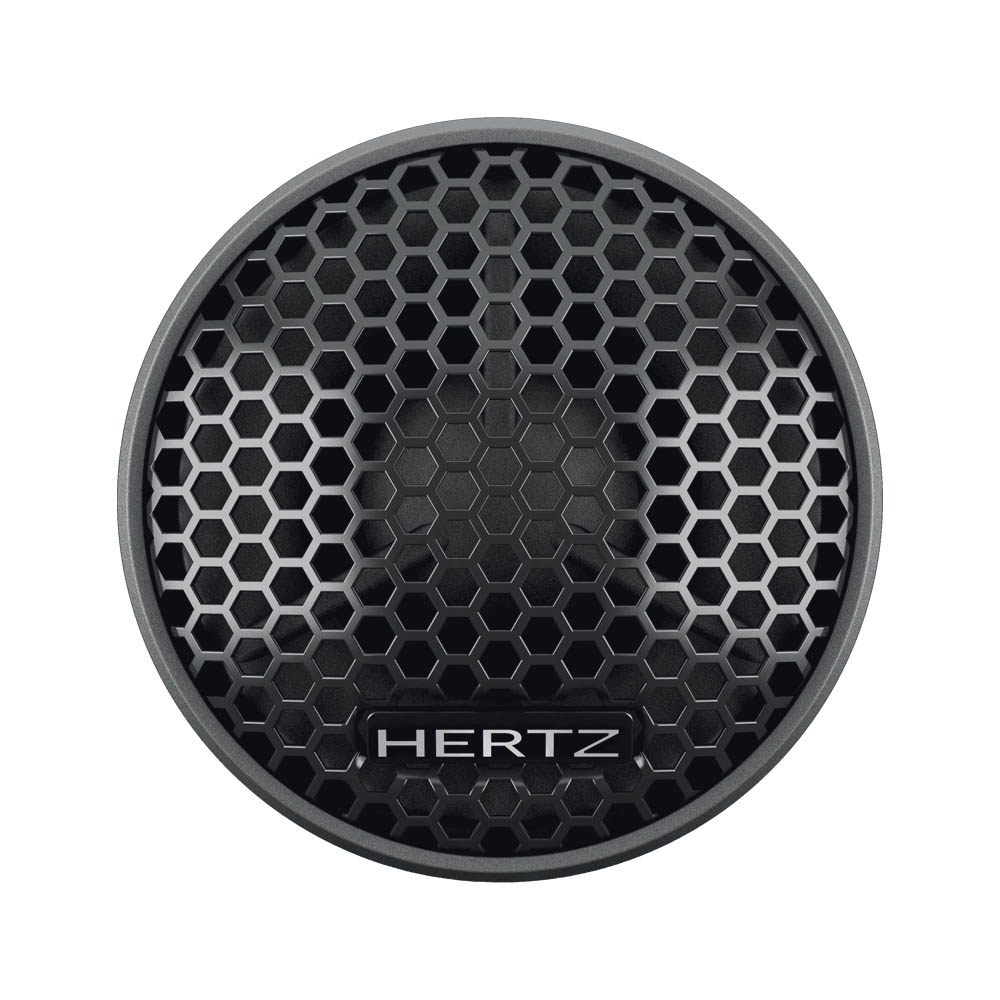

Hertz DT 24.3 Dieci series car audio tweeters

Hertz DT 24.3 Dieci series car audio tweeter features an optimized structure of the neodymium tweeter and offers high efficiency and linear, extended frequency response unheard of in this category. DT 24.3 optimized geometry boasts an efficient, highly linear annular acoustic lens along with a PEI membrane, selected for its high stiffness and heat resistance. These design solutions provide the best damping with a detailed, linear sound, even at high SPL levels. Its installation is universal thanks to the supplied brackets allowing both surfaces mount and flush mount applications.

Key Features:

1. PEI Dome Diaphragm
   The tweeter features a Polyetherimide (PEI) dome, selected for its high stiffness and heat resistance, ensuring accurate and consistent high-frequency performance.
2. Neodymium Magnet
   Equipped with a neodymium magnet, the DT 24.3 offers a strong magnetic field in a compact size, contributing to its high efficiency and extended frequency response.
3. Annular Acoustic Lens
   The optimized geometry includes an efficient, highly linear annular acoustic lens, enhancing sound dispersion and providing a detailed, linear sound even at high SPL levels.
4. Versatile Mounting Options
   The tweeter comes with supplied brackets allowing for both surface mount and flush mount applications, offering flexibility to suit various installation needs.
5. High Sensitivity
   With a sensitivity of 94 dB, the DT 24.3 efficiently converts power into sound, resulting in clear and dynamic high-frequency reproduction.

Product Specifications:

• Size: 0.9″ (24 mm)
• Peak Power Handling: 80W (@ 3.5 kHz, 6 dB/Oct)
• Impedance: 4 Ohms
• Frequency Response: 3 kHz – 23 kHz
• Sensitivity: 94 dB SPL
• Mounting Hole Diameter: 36 mm
• Mounting Depth: 13 mm
• Magnet Material: Neodymium
• Dome Material: PEI (Polyetherimide)
