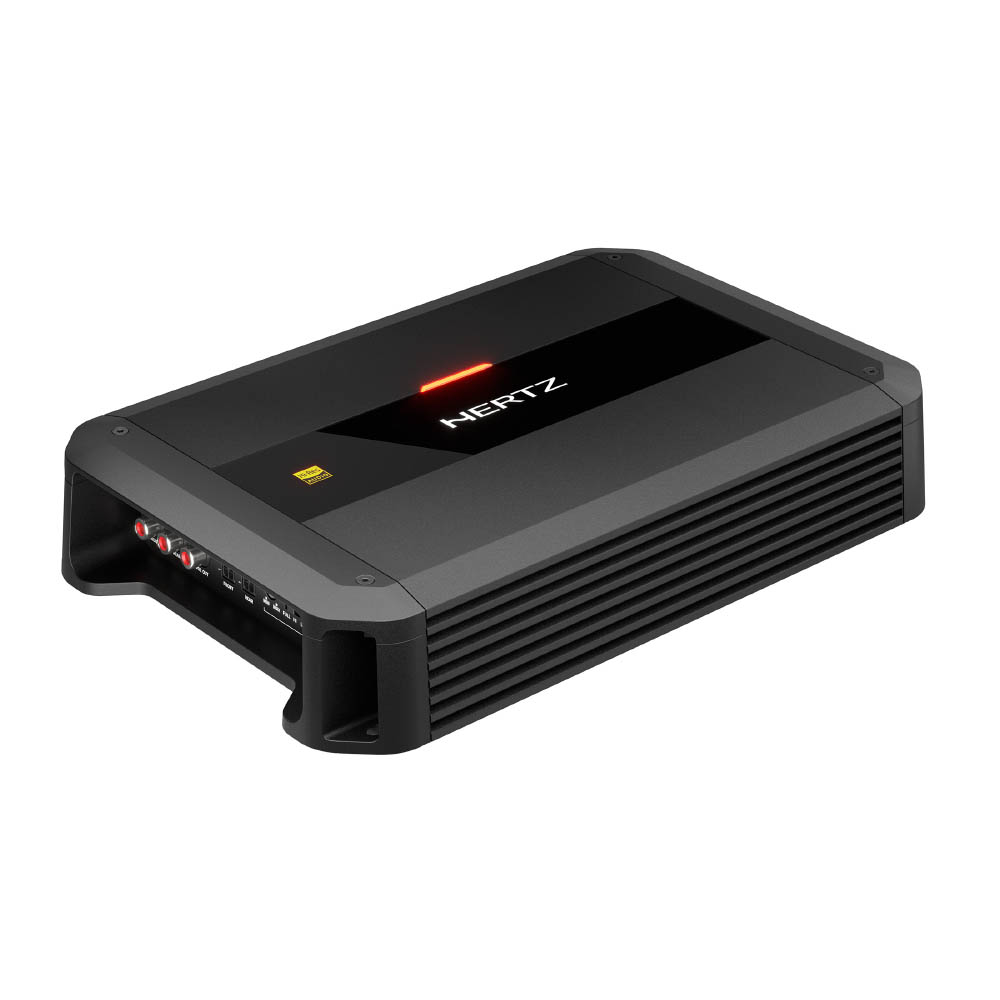

Hertz DP 4.300 4-channel Class-AB car audio amplifier

Hertz DP 4.300 4-channel Class-AB car audio amplifier is an audio powerhouse designed to elevate your car audio experience to unprecedented heights. Boasting High-Resolution Audio Certification, this amplifier delivers an impressive frequency response of 10 Hz to 45 kHz, ensuring that every nuance of your music is faithfully reproduced with crystal-clear precision.

Despite its compact size, the DP 4.300 packs a punch with its maximum power output, featuring fully bridgeable 4-channel Class-AB amplification and 2Ω stability. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.

The amplifier’s aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.

Universal compatibility is a key feature of the DP 4.300, offering an operating supply voltage ranging from 6.5 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.

Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.

Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.

Whether utilizing Speaker-In or Pre-In level inputs, the DP 4.300 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 4.300 – where power, precision, and style converge for an unparalleled listening experience on the road.

Product Specifications:

• Channels: 4 (Stereo)
• Amplifier Class: AB
• Power Output (RMS):
  • 60W x 4 at 4 ohms
  • 85W x 4 at 2 ohms
  • 170W x 2 bridged at 4 ohms
• Frequency Response: 10 Hz – 45 kHz
• Signal-to-Noise Ratio: 100 dB (A-weighted)
• Total Harmonic Distortion (THD): 0.01% at 100 Hz, 70% rated power
• Damping Factor: 130 at 1 kHz, 1W
• Input Sensitivity:
  • Pre-In: 0.32 – 8 V RMS
  • Speaker-In: 1.6 – 40 V RMS
• Dimensions (W x H x D): 290 mm x 190 mm x 50 mm
• Fuse Rating: 20A x 2
